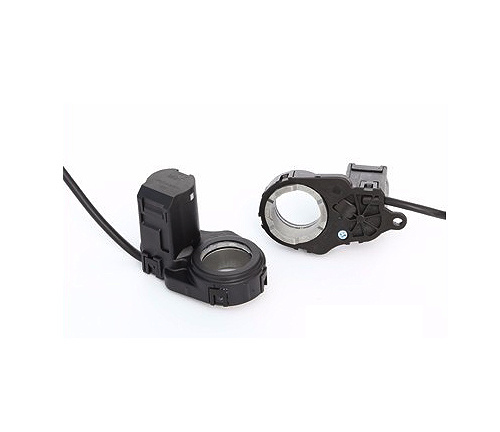

C3 Folding Driver SD002

Product Description

Model Number：SD002
Mirror Power Folder, Electric Power Folder for Auto Rear View Mirror

GENERAL PRODUCT DATA
Description	Specification
Actuator dimensions	Drawing C3
Actuator Color	Black
Nominal Voltage(Unom)	12 [VDC]
Working Voltage rang(Ub)	9<Ub<16[VDC]
Temperature range(Tb)	-40<Tb<85[℃]
Adjustment angle(horizontal)	<120[°]
Adjustment angle(vertical)	≤120[°]
Maximum Glass Weitht	0.75(kg)
GENERAL TESTING DATA
GENERAL TESTING DATA
Description	Value
Testing Voltage(Ut)	13.0 [VDC]
Testing Temperature(Tt)	23[℃]
Testing Humidity(R.H.)	50<R.H.<70[%]
Adjusting directions(Adir)	CW,CCW
FUNCTIONAL MEASUREMENT
FUNCTIONAL MEASUREMENT
Description	Specification(Pre-test)
Travel speed	≥30±10[°/s]
Average nominal current(Inom average)	≤400[mA]
Stall current(Istall)	2500 [mA]
Manual fold-in torque from drive to park(Mnin)	(4.0 ~ 10.0)[Nm]
Manual fold-over torque from drive to forward	(6.0 ~ 14.0)[Nm]
Effective dynamic torque(MRD)	>1.5[Nm]
Sound pressure during travel(L=0.5m)	<50[dB(A)]
FUNCTIONAL TEST
FUNCTIONAL TEST
Description	Value
Temperature endurance test	Electrical cycles 10000(8[s]) at 23[℃]
	Electrical cycles 500(25[s]) at 85[℃]
	Electrical cycles 500(8[s]) at 60[℃],R.H.=90%
	Electrical cycles 750[8(s)] at -30[℃]
