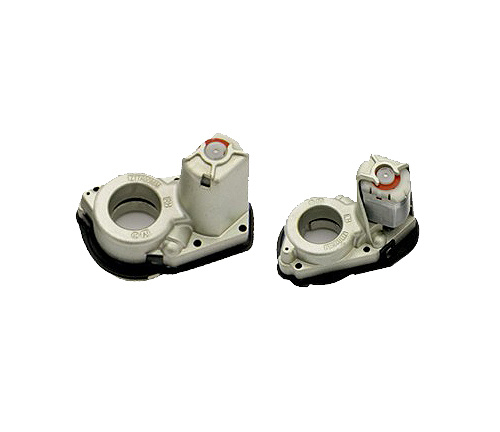

GEN5C Folding Driver SD007

Product Description

Model Number：SD007

Matching many different vehicles, mainly for Audi and BMW 7series
GENERAL PRODUCT DATA
Description	Specification
Actuator dimensions	Drawing GEN5C
Actuator Color	Ecru/Black
Nominal Voltage(Unom)	12 [VDC]
Working Voltage rang(Ub)	9<Ub<16[VDC]
Temperature range(Tb)	-40<Tb<85[℃]
Adjustment angle(horizontal)	<120[°]
Adjustment angle(vertical)	≤120[°]
Maximum Glass Weitht	1.20(kg)
GENERAL TESTING DATA
GENERAL TESTING DATA
Description	Value
Testing Voltage(Ut)	14.0[VDC]
Testing Temperature(Tt)	23[℃]
Testing Humidity(R.H.)	50<R.H.<70[%]
Adjusting directions(Adir)	CW,CCW
FUNCTIONAL MEASUREMENT
FUNCTIONAL MEASUREMENT
Description	Specification(Pre-test)
Travel speed	30±5[°/s]
Average nominal current(Inom average)	≤400[mA]
Stall current(Istall)	≤3200[mA]
Manual fold-in torque from drive to park(Mnin)	>10[Nm]
Manual fold-over torque from drive to forward	>10Nm]
Effective dynamic torque(MRD)	>4.5[Nm]
Sound pressure during travel(L=0.5m)	<65[dB(A)]
FUNCTIONAL TEST
FUNCTIONAL TEST
Description	Value
Temperature endurance test	Electrical cycles 10000(8[s]) at 23[℃]
	Electrical cycles 500(25[s]) at 85[℃]
	Electrical cycles 500(8[s]) at 60[℃],R.H.=90%
	Electrical cycles 750[8[s]] at -30[℃]
