YARIS Folding System SDJ004

Product Description

Model Number：SDJ004

Matching models: TOYOTA Yalis

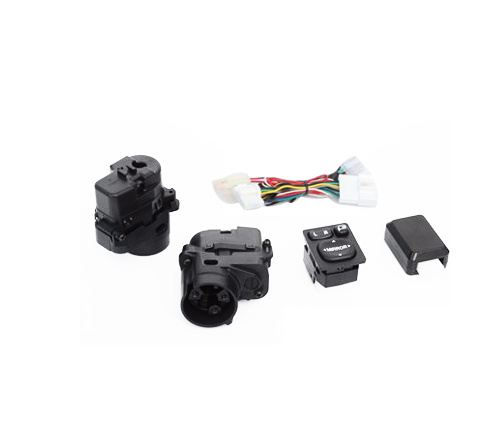

This folding system include: powerfold-actuator, folder-base, connection-plate, wire harness and adaptor button.
GENERAL PRODUCT DATA
Description	Specification

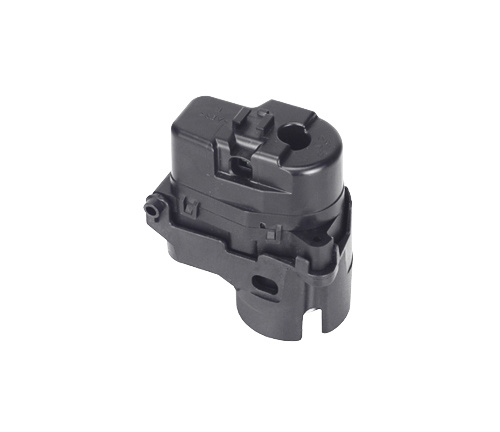

Actuator dimensions	Drawing YARIS
Actuator Color	Black
Nominal Voltage(Unom)	12 [VDC]
Working Voltage rang(Ub)	9<Ub<16[VDC]
Temperature range(Tb)	-40<Tb<85[℃]
Adjustment angle(horizontal)	<80[°]
Adjustment angle(vertical)	≤105[°]
Maximum Glass Weitht	0.75(kg)
GENERAL TESTING DATA
GENERAL TESTING DATA
Description	Value
Testing Voltage(Ut)	13.5[VDC]
Testing Temperature(Tt)	23[℃]
Testing Humidity(R.H.)	50<R.H.<70[%]
Adjusting directions(Adir)	CW,CCW
FUNCTIONAL MEASUREMENT
FUNCTIONAL MEASUREMENT
Description	Specification(Pre-test)
Travel speed	≥20[°/s]
Average nominal current(Inom average)	≤400[mA]
Stall current(Istall)	700≤Istall≤1500[mA] (Power off protection)
Manual fold-in torque from drive to park(Mnin)	(4.0~10.0)[Nm]
Manual fold-over torque from drive to forward	(6.0~14.0)[Nm]
Effective dynamic torque(MRD)	>1.25[Nm]
Sound pressure during travel(L=0.5m)	<55[dB(A)]
FUNCTIONAL TEST
FUNCTIONAL TEST
Description	Value
Temperature endurance test	Electrical cycles 10000(8[s]) at 23[℃]
	Electrical cycles 500(25[s]) at 85[℃]
	Electrical cycles 500(8[s]) at 60[℃],R.H.=90%
	Electrical cycles 750[8[s]] at -30[℃]
