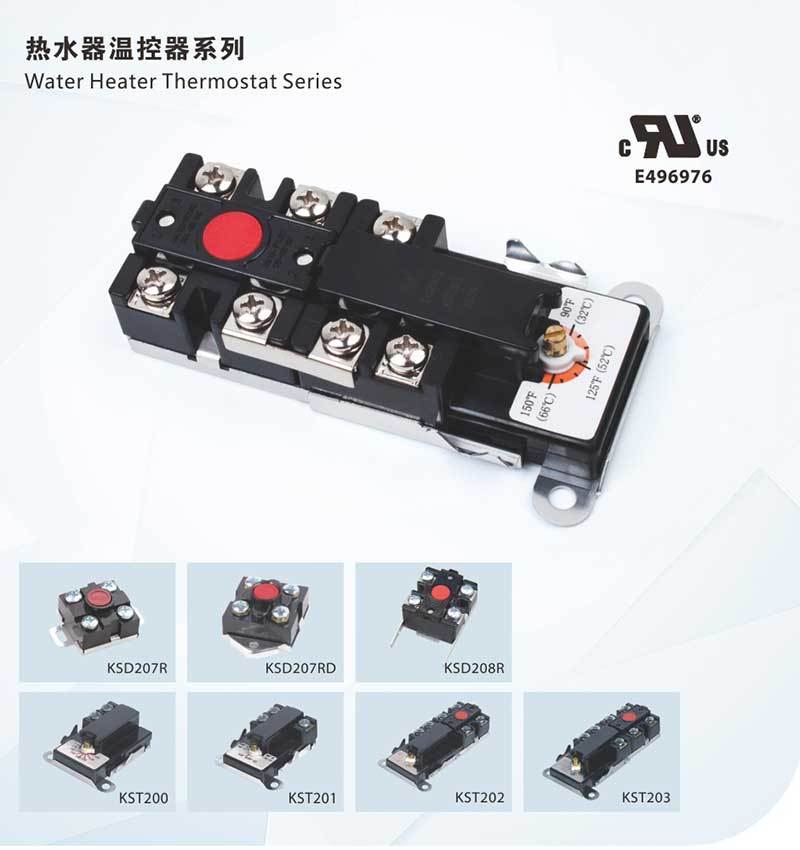

Water Heater Thermostat Series

Product Description

KST200 SERIES controls are designed to meet the high electrical capacity requirements of electric water heaters. The speed and force of contact separation provides long-dependable control life at high electrical loads.

Approval: UL CUL

Technical Specification

型号 Model	开关类型 Switch Action	可调温度差 Approximate Adjust. Range	标准可调温度范围 Standard Adjustable Temperature Range	动作温度 Open Temperature	温差 Standard Differential
KST200	SPST	60℉（33℃）	90° - 150℉（33° - 66℃）	Max 200℉(93℃) Min90℉(32℃)	3-9
KST201	SPDT	60℉（33℃）	90° - 150℉（33° - 66℃）	Max 200℉(93℃) Min90℉(32℃)	9-14
KST208R	DPST Manual Reset	----	----	Max 266	手动复位Manual Reset
